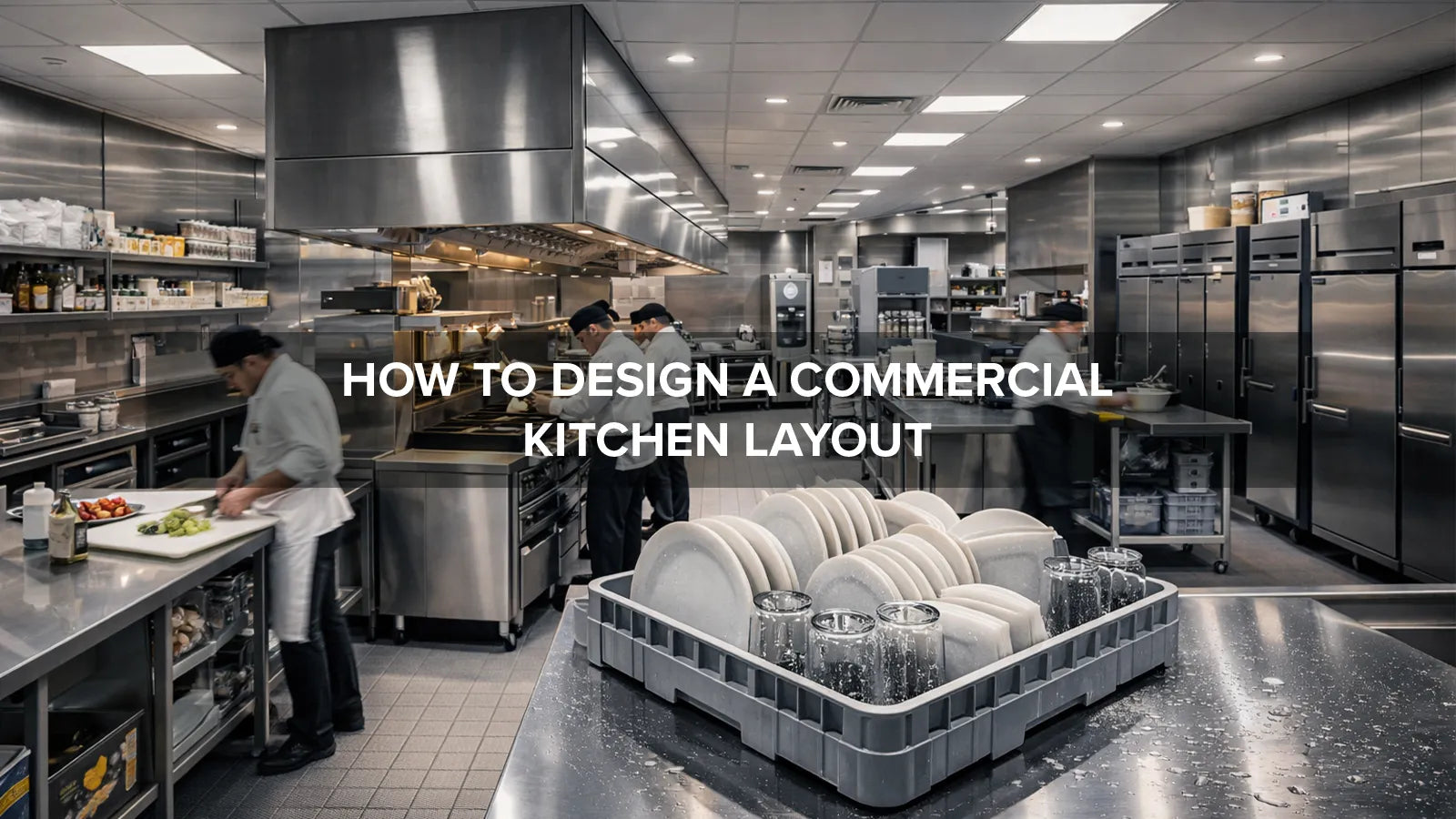

How to Design a Commercial Kitchen Layout (Complete Guide)

Designing a commercial kitchen layout isn’t just about fitting equipment into a space—it’s about creating a system that supports speed, consistency, safety, and long-term growth.

A well-designed kitchen can:

• Increase productivity
• Reduce labor costs
• Improve food quality and consistency
• Prevent bottlenecks during peak hours

👉 In real operations, layout often matters more than equipment quality.

Key Principles of Commercial Kitchen Design

Before choosing equipment or layout styles, focus on these core fundamentals. These determine whether your kitchen runs efficiently or struggles under pressure.

1. Workflow Efficiency

Your kitchen should follow a logical, linear flow:

Storage → Prep → Cooking → Plating → Service

Stage	Function	Key Consideration
Storage	Ingredients, dry and cold goods	Easy access, minimal walking
Prep	Cutting and portioning	Clean workspace, proper separation
Cooking	Heat stations	Centralized and efficient flow
Plating	Assembly and finishing	Close to service area
Service	Pickup or pass	Fast handoff, minimal delay

Common workflow problems:

• Cross-traffic between staff
• Prep and cooking areas too far apart
• Bottlenecks near service or pass
• Backtracking (unnecessary movement)

👉 Goal: Minimize movement, reduce steps, and eliminate congestion.

2. Space Optimization

Commercial kitchens are often limited in space, especially in high-rent or urban locations.

Strategy	Benefit
Vertical storage	Maximizes limited floor space
Multi-functional equipment	Reduces equipment footprint
Compact layouts	Improves workflow efficiency
Mobile stations	Adds flexibility

Practical tips:

• Use wall-mounted shelves and racks
• Choose undercounter refrigeration
• Avoid oversized equipment unless necessary
• Keep pathways clear for safety and speed

👉 Key insight: In small kitchens, layout efficiency matters more than equipment size.

3. Safety and Compliance

Your layout must meet all local health, safety, and building regulations.

Area	Requirement
Food safety	Separate raw and cooked areas
Fire safety	Proper spacing and suppression systems
Ventilation	Adequate exhaust and airflow
Sanitation	Easy-to-clean surfaces and access

Risks of poor design:

• Cross-contamination
• Fire hazards
• Poor ventilation
• Failed inspections

👉 Reality: Poor design can lead to fines, shutdowns, or operational risk.

4. Flexibility and Scalability

Your kitchen should meet current needs while allowing room for future growth.

Plan for:

• Menu expansion
• Increased customer volume
• New equipment additions
• Staff growth

Smart design strategies:

• Leave space for additional equipment
• Use modular or movable stations
• Avoid over-customizing too early

👉 Operator insight: Many kitchens outgrow their layout faster than expected—plan ahead.

Parts of a Commercial Kitchen

A well-designed commercial kitchen isn’t a single space—it’s a system of connected work areas. Each zone plays a specific role in the overall workflow, and how these areas connect determines how efficiently your kitchen operates.

👉 When properly designed, these areas improve speed, food safety, and consistency while reducing unnecessary movement.

Commercial Kitchen Areas at a Glance

Area	Primary Function	Priority Level
Receiving	Accept deliveries	High
Storage	Store ingredients	High
Prep	Prepare food	High
Cooking	Produce food	Critical
Plating/Service	Final assembly	Critical
Cleaning	Sanitation	High
Waste	Disposal	Medium
Staff Area	Support team	Optional

Parts of a Commercial Kitchen (Workflow-Focused Guide)

A commercial kitchen isn’t a single space—it’s a system of connected work zones. Each area plays a specific role, and how they connect determines your kitchen’s speed, efficiency, and food safety.

👉 When properly designed, these areas deliver faster service, better consistency, and smoother operations.

Commercial Kitchen Areas Overview

Area	Primary Function	Priority
Receiving	Accept deliveries	High
Storage	Store ingredients	High
Prep	Prepare food	High
Cooking	Food production	Critical
Plating/Service	Final assembly	Critical
Cleaning	Sanitation	High
Waste	Disposal	Medium
Staff Area	Support space	Optional

1. Receiving Area (Start of the Supply Chain)

Purpose: Accept, inspect, and organize incoming deliveries

Component	Function	Why It Matters
Delivery access	Supplier entry point	Reduces unloading time
Inspection table	Check quality and quantity	Prevents bad inventory
Holding area	Temporary staging	Keeps workflow organized

Best practices:

• Place near storage areas
• Keep pathways clear for carts
• Inspect immediately (temperature, freshness, damage)

👉 Insight: Fast receiving improves overall kitchen readiness.

2. Storage Area (Organization & Inventory Control)

Purpose: Store ingredients safely and efficiently

Storage Type	Use Case	Equipment
Dry storage (shelves, racks, and commercial storage solutions)	Pantry items	Shelves, racks
Refrigerated storage (walk-in coolers and commercial refrigeration units)	Perishables	Walk-in coolers
Frozen	Long-term storage	Freezers

Best practices:

• Use FIFO (First In, First Out)
• Label all items clearly
• Store high-use items at waist-to-eye level
• Separate raw and ready-to-eat foods

👉 Insight: Organized storage reduces prep time and prevents waste.

3. Food Preparation Area

Purpose: Prepare ingredients before cooking

Equipment	Function
Prep tables	Work surfaces
Sinks	Washing ingredients
Cutting stations	Portioning

Best practices:

• Separate raw and ready-to-eat prep
• Keep tools within arm’s reach
• Standardize workstation setup

👉 Insight: Prep efficiency directly impacts service speed.

4. Cooking Area (Hot Line)

Purpose: Main food production zone

Equipment	Use
Ranges	General cooking
Ovens	Baking/roasting
Fryers	Frying
Grills	High-heat cooking

Best practices:

• Group equipment by cooking type
• Keep prep stations nearby
• Ensure strong ventilation

👉 Critical insight: This is the busiest zone—design for speed and minimal movement.

5. Plating & Service Area

Purpose: Final assembly and order handoff

Component	Function
Pass/expo	Coordinates orders
Heat lamps	Maintains temperature
Garnish station	Final presentation

Best practices:

• Position next to cooking line
• Keep uncluttered
• Ensure fast server access

👉 Goal: Seamless handoff from kitchen to customer.

6. Cleaning & Dishwashing Area

Purpose: Maintain sanitation by cleaning dishes, utensils, cookware, and equipment efficiently.

The dishwashing area is one of the most important support zones in a commercial kitchen. If it is too small, poorly placed, or disorganized, dirty dishes can pile up quickly and slow down prep, cooking, plating, and service.

Key Components

Component	Function	Why It Matters
Dishwashers	Clean large volumes quickly	Speeds up turnover during busy service
3-compartment sinks	Wash, rinse, and sanitize	Supports health code compliance
Drying racks	Organize clean items after washing	Prevents clutter and improves workflow

Best Practices

• Keep dishwashing separate from food prep areas
• Maintain a clear dirty → clean workflow
• Place dirty drop-off and clean storage in separate zones
• Ensure proper drainage to prevent standing water
• Provide enough drying space for peak periods
• Clean and sanitize sinks, racks, and surrounding surfaces regularly

👉 Key insight: Inefficient dishwashing slows the entire kitchen. When plates, pans, and utensils are not available when needed, every station feels the delay.

7. Waste Disposal Area

Purpose: Manage trash, recycling, food waste, and grease safely without disrupting food preparation or service.

A waste disposal area may not seem like a major part of kitchen design, but poor waste flow can quickly create sanitation problems, odors, pests, and staff congestion.

Key Components

Best Practices

• Keep waste areas away from prep and cooking zones
• Place bins where staff can access them without crossing food paths
• Empty trash frequently during service
• Use clearly labeled containers
• Keep lids closed when possible
• Clean and sanitize waste areas daily

👉 Key insight: Waste flow should never cross food flow. Dirty items, trash, and food waste should move in a separate direction from ingredients, prep, plating, and service.

8. Staff Area

Purpose: Support staff efficiency, organization, hygiene, and comfort.

A dedicated staff area helps keep personal belongings, breaks, and hygiene routines separate from active food production zones. Even in small kitchens, planning for staff needs improves organization and reduces clutter.

Key Components

Why It Matters

A well-planned staff area can:

• Reduce clutter in prep and service areas
• Improve staff flow during busy shifts
• Support hygiene and compliance standards
• Help employees stay organized and focused

👉 Key insight: Better staff flow improves overall kitchen performance. A team that can move, wash, store, and reset efficiently will work more safely and consistently.

How These Kitchen Parts Work Together

A commercial kitchen isn’t just a collection of areas—it’s a continuous workflow system. Each part should connect logically to the next to reduce movement and increase speed.

Standard Kitchen Flow

Receiving → Storage → Prep → Cooking → Plating → Service → Cleaning

Example Flow in Practice

1. Ingredients arrive at the receiving area
2. Stored in dry, cold, or frozen storage
3. Moved to prep stations for cutting and portioning
4. Sent to the cooking line for production
5. Finished at the plating/pass station
6. Delivered to customers
7. Dishes move to the cleaning area

Why This Matters

Poor connections between these areas lead to:

• Staff crossing paths (slows service)
• Backtracking (wasted movement)
• Bottlenecks during peak hours

👉 Key insight: The most efficient kitchens are designed around flow between zones, not just the zones themselves.

Types of Commercial Kitchen Layouts

Choosing the right commercial kitchen layout is one of the most important operational decisions you’ll make. It directly impacts:

• How fast your team works
• How efficiently food moves
• How well you handle peak demand

👉 Key principle: The best layouts are built around workflow—not equipment.

Quick Comparison: Which Layout Fits Your Operation?

Layout Type	Best For	Space Needs	Speed	Flexibility	Staff Coordination
Assembly line	Fast food, QSR	Medium	Very high	Low	Low
Zone-style	Full-service restaurants	Large	High	Very high	High
Island	Large kitchens, hotels	Very large	High	High	Medium–high
Galley	Small kitchens	Small	Moderate	Low	Medium
Open kitchen	Customer-facing concepts	Medium+	Moderate	Moderate	High

1. Assembly Line Layout (Built for Speed)

Best for: Fast food, quick-service restaurants, high-volume kitchens

Food flows in a straight, linear path:

Prep → Cook → Assemble → Serve

Stage	Role Example	Function
Prep	Prep cook	Prepares ingredients
Cooking	Line cook	Cooks food
Assembly	Assembler	Builds dishes
Service	Expo/server	Delivers food

Strengths

• High speed during peak periods
• Simple training and onboarding
• Consistent, repeatable output

Weaknesses

• Bottlenecks if one station slows down
• Limited menu flexibility
• Repetitive roles reduce staff versatility

👉 Insight: Best suited for predictable, high-volume menus.

2. Zone-Style Layout (Flexibility & Organization)

Best for: Full-service restaurants and diverse menus

The kitchen is divided into specialized zones:

Zone	Purpose	Equipment Examples
Prep	Ingredient preparation	Tables, slicers
Cooking	Main cooking	Ranges, fryers
Baking	Specialty production	Ovens
Plating	Finishing	Pass station

Strengths

• Clear organization and responsibilities
• Supports complex and varied menus
• Reduces congestion between stations

Weaknesses

• Requires more space
• Needs strong communication between teams
• Higher labor requirements

👉 Insight: Performs best with experienced staff and structured workflows.

3. Island Layout (Centralized Efficiency)

Best for: Large restaurants, hotels, high-output kitchens

Cooking equipment is placed in a central island, with prep and storage around the perimeter.

Area	Position
Cooking	Center island
Prep & storage	Perimeter
Service	Outer edge

Strengths

• Centralized access improves communication
• Encourages team collaboration
• Reduces walking distances in large spaces

Weaknesses

• Requires significant space
• Higher installation and infrastructure cost
• More complex to design effectively

👉 Insight: Ideal for high-volume, team-based cooking environments.

4. Galley Layout (Maximize Small Spaces)

Best for: Small kitchens, food trucks, compact layouts

Equipment and workstations are arranged along two parallel sides.

Left Side	Right Side
Cooking	Prep and storage
Equipment	Workstations

Strengths

• Highly space-efficient
• Lower setup cost
• Simple and manageable workflow

Weaknesses

• Congestion in narrow spaces
• Limited scalability
• Heat buildup due to close equipment

👉 Tip: Assign clear roles to reduce traffic issues.

5. Open Kitchen Layout (Experience-Driven)

Best for: Customer-facing restaurants and modern dining concepts

The kitchen is visible to customers and integrated into the dining experience.

Feature	Purpose
Visibility	Customers see the cooking process
Integration	Dining and kitchen areas are connected
Presentation	Cooking becomes part of the brand experience

Strengths

• Enhances customer engagement
• Builds transparency and trust
• Strengthens brand identity

Weaknesses

• Requires high cleanliness standards
• Noise and heat can affect guests
• Staff must maintain professionalism at all times

👉 Insight: Open kitchens turn cooking into part of the customer experience and brand story.

Layout Selection Framework

Match Layout to Business Type

Business Type	Recommended Layout
Fast food / QSR	Assembly line
Full-service restaurant	Zone-style
High-volume hotel	Island
Small café	Galley
Experiential dining	Open kitchen

Decision Factors

Factor	What to Consider
Menu complexity	More complex menus often need zone layouts
Space size	Smaller spaces often work best with galley layouts
Service speed	High-speed operations benefit from assembly lines
Customer visibility	Open layouts support experience-driven concepts
Growth plans	Choose modular or scalable layouts when possible

Step-by-Step: How to Design a Commercial Kitchen

Designing a commercial kitchen isn’t about guessing where equipment goes—it’s about building a system that supports speed, workflow, and real-world service pressure.

👉 The most efficient kitchens are designed from the menu outward—not the space inward.

Kitchen Design Overview

Step	Focus Area	Outcome
1	Menu	Defines equipment and complexity
2	Workflow	Determines movement and layout
3	Equipment	Matches capacity to demand
4	Work zones	Organizes operations
5	Utilities	Ensures functionality and compliance
6	Testing	Optimizes performance

Step 1: Understand Your Menu

Your menu drives every design decision.

Menu Type	Design Implication
Fry-heavy	Requires multiple fryers and oil handling space
Grill-based	Needs high-BTU cooking line
Baking/pastry	Requires ovens and large prep areas
Mixed menu	Benefits from a zoned layout

👉 Key insight: More complex menus require more stations, space, and coordination.

⚠️ Common mistake: Designing the kitchen first, then forcing the menu to fit.

Step 2: Plan Your Workflow

Map how ingredients, staff, and orders move through the kitchen.

Stage	Movement Direction
Receiving	Delivery → storage
Storage	Storage → prep
Prep	Prep → cooking
Cooking	Cooking → plating
Service	Plating → customer

Avoid these workflow issues:

• Cross-traffic between staff
• Backtracking and unnecessary movement
• Long distances between stations

👉 Rule: Every extra step increases labor cost and slows service.

Step 3: Choose Equipment

Select equipment based on real usage—not assumptions.

Approach	Result
Multi-functional equipment	Saves space
Right-sized capacity	Matches demand
Modular equipment	Easier to scale

Overbuying risks:

• Wasted space
• Unused equipment
• Inefficient layouts

👉 Insight: Unused equipment is a major hidden inefficiency.

Step 4: Allocate Work Zones

Divide your kitchen into clear functional areas.

Zone	Function	Key Equipment
Receiving & Storage	Inventory handling	Shelving, refrigeration
Prep	Food preparation	Tables, sinks
Cooking	Heat application	Ranges, fryers
Plating/Service	Final assembly	Pass station
Cleaning	Sanitation	Dishwashers, sinks

Why zoning works:

• Reduces confusion
• Improves speed
• Prevents cross-contamination
• Keeps staff organized

👉 Each zone should flow naturally into the next.

Step 5: Plan Utilities and Ventilation

Infrastructure is just as important as layout.

System	What to Plan
Ventilation	Exhaust hoods and airflow
Electrical	Power capacity and outlets
Gas lines	Proper connections
Plumbing	Water supply and drainage

Common mistakes:

• Poor ventilation leading to heat buildup
• Insufficient power for equipment
• Inadequate drainage causing sanitation issues

👉 Reality: Fixing utility mistakes later is expensive and disruptive.

Step 6: Test and Adjust

Before finalizing your layout, simulate real operations.

Area	What to Evaluate
Staff movement	Check for congestion
Workflow	Identify delays or inefficiencies
Stations	Balance workloads
Service speed	Look for bottlenecks

Testing methods:

• Walk through service scenarios
• Simulate peak-hour conditions
• Gather staff feedback
• Adjust layout as needed

👉 Even small adjustments can significantly improve efficiency.

Common Kitchen Design Mistakes

Mistake	Why It Happens	Impact
Poor workflow design	Lack of planning	Slow service
Overcrowding equipment	Trying to fit too much	Safety risks and inefficiency
Ignoring storage	Underestimating needs	Clutter and delays
No peak planning	Designing for slow periods	Bottlenecks during rush hours
Skipping ventilation	Focusing only on layout	Heat and compliance issues

Real-World Design Insights

Movement Is the Biggest Bottleneck

• Excess walking slows service
• Poor station placement causes delays
• Traffic congestion reduces efficiency

👉 Most delays are caused by layout—not cooking speed.

Layout Matters More Than Equipment

• High-end equipment can’t fix poor positioning
• Flow and placement drive performance

👉 Layout > equipment quality

Efficient Layouts Reduce Fatigue

• Less walking
• Faster service
• Fewer mistakes

👉 Better design improves productivity and staff retention.

Final Takeaway

Designing a commercial kitchen means building a high-performance system—not just filling a space.

A well-designed kitchen:

• Flows logically
• Minimizes movement
• Maximizes output
• Handles peak demand
• Scales with growth

A poorly designed kitchen:

• Creates bottlenecks
• Increases labor costs
• Slows service
• Limits growth

👉 Bottom line: Workflow matters more than square footage.

Space Planning Tips for Commercial Kitchens

Smart space planning can dramatically improve kitchen performance—even without increasing square footage. The goal is to reduce movement, eliminate clutter, and support a smooth, efficient workflow.

Core Space Planning Principles

Tip	What It Means	Why It Matters
Keep high-use equipment within arm’s reach	Place frequently used tools and stations close together	Reduces unnecessary movement and speeds up service
Maintain clear walkways	Ensure pathways are unobstructed and wide enough	Prevents congestion and improves safety
Use vertical storage	Install shelves, racks, and wall-mounted storage	Maximizes space without crowding the floor
Separate hot and cold zones	Keep cooking equipment away from prep and cold storage	Improves efficiency, safety, and temperature control

👉 Key insight: A well-planned layout can significantly increase efficiency without increasing space.

Efficient vs. Inefficient Space Use

Layout Type	Result
Poor spacing, cluttered stations	Slow movement, higher stress, more errors
Organized zones, clear pathways	Faster service, better coordination, safer environment

Additional Space Optimization Tips

• Group related equipment (e.g., fryer near prep station)
• Use undercounter refrigeration to save space
• Keep storage close to prep areas
• Place frequently used tools at waist-to-eye level
• Design for peak hours—not just slow periods

👉 Insight: Small layout improvements can lead to major efficiency gains.

FAQ: Commercial Kitchen Layout

What is the most efficient kitchen layout?

The assembly line layout is typically the most efficient for high-volume operations because it minimizes movement and standardizes workflow.

How much space do you need for a commercial kitchen?

It depends on your concept, menu, and volume.

👉 Key point: Efficiency matters more than total size. A well-designed small kitchen can outperform a poorly designed large one.

What is the biggest mistake in kitchen design?

Poor workflow planning.

👉 This leads to:

• Bottlenecks
• Staff collisions
• Slower service

Can a small kitchen be efficient?

Yes—with the right design approach:

• Smart layout planning
• Multi-functional equipment
• Clear zoning and workflow

👉 Many high-performing kitchens operate efficiently in limited space.

Final Thoughts

A great commercial kitchen layout isn’t about size—it’s about how effectively the space is used.

Focus on:

• Flow: Logical movement of food and staff
• Efficiency: Minimal wasted motion
• Placement: Right equipment in the right location

High-performance kitchens:

• Reduce staff fatigue
• Improve service speed
• Maintain consistency under pressure

Poorly planned kitchens:

• Create delays
• Increase errors
• Limit growth

👉 Bottom line: The best kitchens are designed around how people actually work—not just where equipment fits.

Build a High-Performance Kitchen

The right equipment plays a major role in how well your layout performs.

At RestaurantSupply.com, you’ll find:

• Space-saving commercial equipment
• High-performance kitchen tools
• Flexible solutions for kitchens of all sizes

👉 Explore RestaurantSupply.com to build a kitchen that maximizes efficiency, workflow, and long-term performance.
