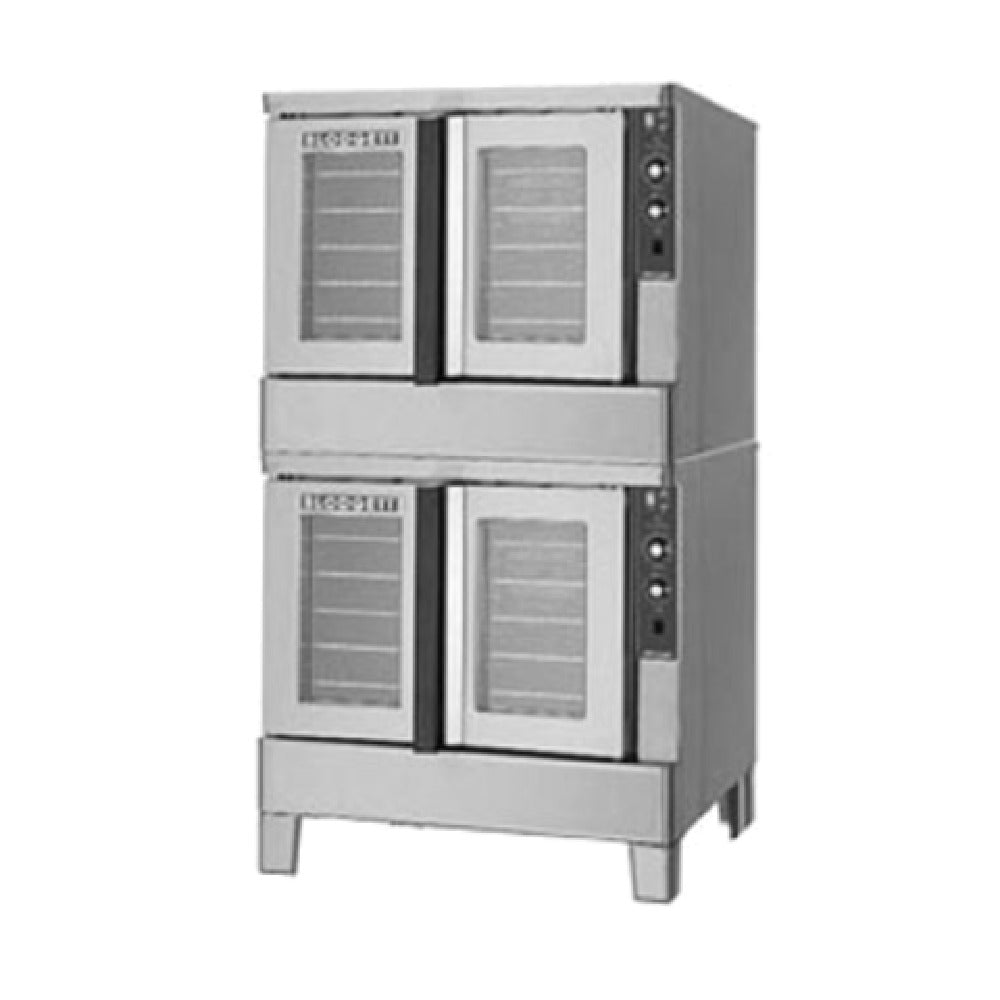

Blodgett ZEPH-200-E DBL_208/60/1 Double Deck Full Size Bakery Depth Electric Convection Oven - 208V, 22kW

Due to supply chain issues, this model is temporarily being manufactured with an SSI-M control panel instead of the SSI-D control panel shown in the item images.

The ZEPH-200-E Double is 38-1/4" wide, stainless steel, double-deck full size electric Zephaire Series convection oven from Blodgett that has stainless steel doors with dual pane thermal glass windows. There is a bakery depth baking compartment that can accommodate (10) 18" x 26" pans (5 per oven). The unit has full angle iron frames, double-sided porcelainized baking compartment liners and interior lights. The double-deck convection oven stands firmly on 6" adjustable stainless steel legs.

There 3 tubular heaters, a 2 speed fan motor and solid state infinite controls with a 60 minute electro-mechanical timer that allows you to set precise temperatures from 200 to 500 degrees F on each convection oven. The ovens come equipped with a cooling fan and a 1/2 HP blower motor that has automatic thermal overload protection.

The ZEPH-200-E is an electric unit and each runs at 11 kW (22 kW total) on 208 Volts, 1-phase and 51 Amps. This unit must be hardwired and a plug and cord are not included.

The convection oven is ENERGY STAR certified, ETL listed for the United States and Canada, and NSF listed.

Blodgett ZEPH-200-E DBL_208/60/1 Features

• Zephaire Convection Oven
• Material: Stainless Steel
• Color: Silver
• Sections: 2
• Electrical Specifications: 208V/60Hz/1-ph
• Amperage: 51
• Wattage: 11,000 (Per Section)
• Full Angle Iron Frame
• (5) Chrome-plated Racks, (11) Rack Positions (Per Section)
• Solid Mineral Fiber Insulation At Top, Back, Sides And Bottom
• Stainless Steel Front, Top, Sides And Legs
• Double-Sided Porcelainized Baking Compartment Liner
• Aluminized Steel Combustion Chamber
• Triple-Mounted Pressure Lock Door Design
• Dual Pane Thermal Glass Windows
• Stainless Steel Door Frames
• Powder Coated Door Handle
• Simultaneous Door Operation
• Dual Flow Gas System
• Air Mixers With Adjustable Air Shutters
• Electronic Spark Ignition Control System
• Dual Inlet Blower Wheel
• Removable Front Control Panel
• Removable Dual Tube Burners
• Pressure Regulator In Front Control Area
• Manual Gas Service Cut-Off Valve
• Temperature Control Range Of 200°F To 500°F
• Solid State Thermostat
• Electro-mechanical 60 Minute Timer Dial Control
• Control Area Cooling Fan
• Two-Speed Fan Motor
• 1/2 HP Blower Motor
• Automatic Thermal Overload Protection
• (2) 50 Watt Commercial Bake Oven Lamps (Per Section)
• 6" Adjustable Stainless Steel Legs
• CE Listed
• cETLus Listed
• NSF Listed
• ENEGRY STAR Certified

Blodgett ZEPH-200-E DBL_208/60/1 Benefits

• Sturdy stainless steel construction
• Thermal glass windows better retain heat
• Auto thermal overload protection helps ensure safer usage
• Removable front control panel provides easy access

Overall Dimensions:

Width: 38.07"

Depth: 42.51"

Height: 66.12"
