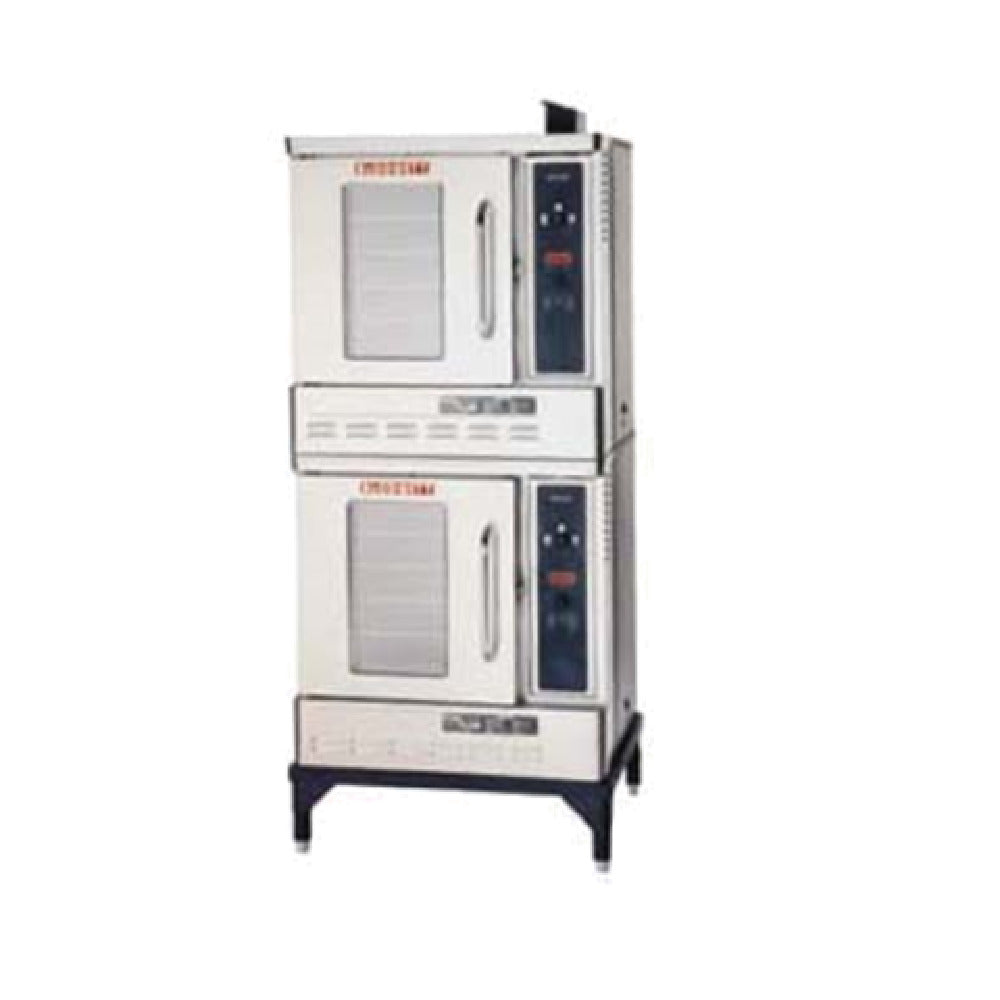

Blodgett DFG-50 DBL_NAT Premium Series Natural Gas Double Deck Half Size Convection Oven - 55,000 BTU

Item
#117526
MFG
#DFG-50 DBL_NAT
Natural Gas
Specification Specifications
Ship Weight 760 LBS
Manufacturer Blodgett
Model Number DFG-50 DBL_NAT
Manufacturer Part # DFG-50 DBL_NAT
Oversized Shipping No
Hazardous Material No
NSF Listed Yes
cETLus Listed Yes
Power Natural Gas
BTU/HR 27,500 (Per Section)
Total BTU 55,000
Horsepower 1/2
Amperage 5
Wattage 8.1 kW
Temperature Range 200°F - 500°F
Color Silver
Base Material Stainless Steel
Dimensions (WxDxH) 30.25" x 25.13" x 68.88"
View all Specifications
Description

Constructed out of stainless steel, the Blodgett DFG-50 DBL_NAT convection oven will be able to handle consistent usage. The stainless steel door frame holds double-paned thermal windows, which helps retain heat. The powder coated handle is easy to grasp and opens both doors at the same time. The door is triple-mounted and guarantees it will remain closed with a tight seal during operation. The chamber, which also boasts stainless steel construction, is lined with porcelain on both sides of the walls. As a part of the architecture of this particular oven, aluminized steel is used for the base of the combustion chamber and has a dual inlet blower wheel. The interior features halogen lights. The oven uses a dual flow gas system that is designed for both direct and indirect heat, and raises temperatures that will range between 200°F and 500°F. An electronic spark system ignites the system. There are removable dual tube burners for needed maintenance and a pressure regulator can be found in the front. The fan has two speeds and the motor has a built-in thermal overload protection.

Blodgett DFG-50 DBL_NAT Features

  • Gas Convection Oven
  • Material: Stainless Steel
  • Color: Silver
  • Sections: 2
  • Power: Natural Gas
  • Amperage: 5
  • Wattage: 8.1 kW
  • BTU Per Section: 27,500
  • Total BTU: 55,000
  • Solid State Thermostat w/ Control Range Of 200°F - 500°F
  • Dual Flow Gas System
  • Electronic Spark Ignition Control System
  • Tilt-Down Modular Front Control Panel
  • Automatic Thermal Overload Protection
  • Full Angle-Iron Frame
  • Aluminized Steel Combustion Chamber
  • Double-Sided Porcelainized Baking Compartment Liner
  • (5) Chrome-Plated Racks, (9) Rack Positions (Per Section)
  • Solid Mineral Fiber Insulation At Top, Back, Sides, And Bottom
  • Stainless Steel Front, Top, Sides And Back
  • Stainless Steel Door Frame
  • Dual Pane Thermal Glass Window
  • Single Chrome Plated Door Handle
  • Air Mixers w/ Adjustable Air Shutters
  • Manual Gas Service Cut-Off Valve
  • Removable Dual Tube Burner
  • Dual Inlet Blower Wheel
  • Pressure Regulator
  • Single Speed Fan Motor
  • 1/2 Horsepower Blower Motor>
  • One Control Area Cooling Fan
  • cETLus Listed
  • NSF Listed

Blodgett DFG-50 DBL_NAT Benefits

  • Sturdy stainless steel construction
  • Thermal overload protection helps ensure safer usage
  • Interior lighting provides better visibility
  • Simultaneous door operation allows for convenient usage

Overall Dimensions:

Width: 30.25"

Depth: 25.13"

Height: 68.88"

View all Description
NSF Listed
NSF Listed
This item meets the standards imposed by NSF International, which focuses on public safety, health, and the environment.
ETL Sanitation
ETL Sanitation
This item meets all sanitation standards imposed by the ETL, a division of the Intertek Group.
CE Listed
CE Listed
This item complies with the standards by the Conformance European (CE), a division of the Intertek group.
5-15P
5-15P
This unit comes with a NEMA 5-15P plug.
3/4" Gas Connection
3/4" Gas Connection
This unit comes with a 3/4" gas connection.
Not For Residential Use
Not For Residential Use
Installed in a non-commercial setting will void your homeowner's insurance and the equipment manufacturer's warranty.
Free Shipping
Add this item to the cart to calculate your shipping rate
In stock
Shipping
Typically ships in 2-3 business days
Shipping
Typically ships in 1-2 business day.
Other Available Options:
  • Natural Gas
  • 55,00 BTU, 8.1 kW, 5 Amps
  • Thermostat Control Range 200°F - 500°F
  • Electronic Spark Ignition Control System
  • Automatic Thermal Overload Protection
  • Aluminized Steel Combustion Chamber
  • Double-Sided Porcelainized Compartment Liner
  • (5) Chrome-Plated Racks, (9) Rack Positions
  • Solid Mineral Fiber Insulation
  • Stainless Steel Front, Top, Sides And Back
  • Dual Pane Thermal Glass Window
  • Single Speed Fan Motor
  • 1/2 Horsepower Blower Motor>
  • One Control Area Cooling Fan
  • Warranty Info
  • 2 Years Parts and 1 Year Labor on All Components
  • 5 Years Parts on Doors (Excluding Glass)
