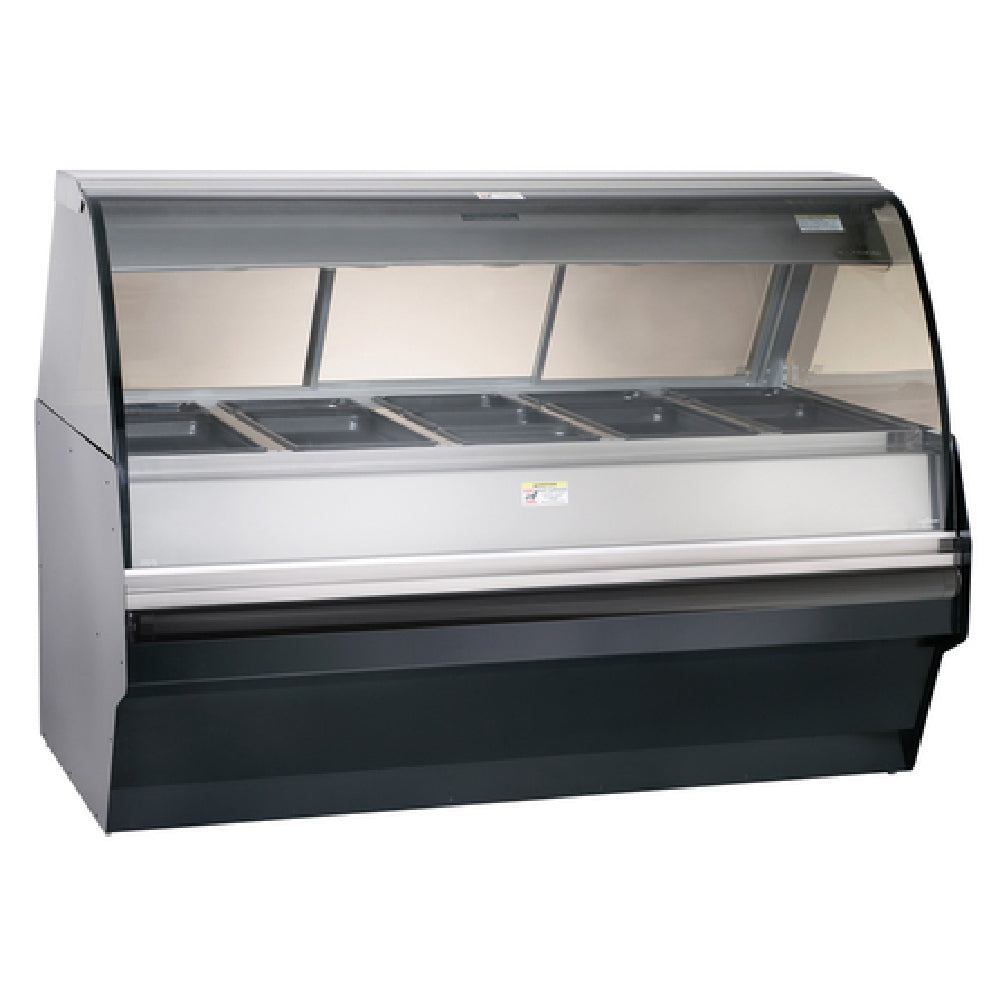

Alto-Shaam TY2SYS-72/PR-SS 72" Stainless Steel Right Side Self Service Heated Deli Display Case With Base And Curved Glass, 208-240V
|Ship Weight||800 lbs|
|Manufacturer Part #||TY2SYS-72/PR-SS|
|Type||Heated Display Cases|
|Height||52 3/16 Inches|
|Depth||51 5/16 Inches|
|Well Length||69 5/16 Inches|
|Well Width||27 3/16 Inches|
|Well Depth||4 1/2 Inches|
|Made In USA||Yes|
|UL Classified EPH||Yes|
|Number of Doors||3|
|Number of Shelves||None|
|Service Type||Self Service|
|Self Service Location||Right Side|
|Number Of Overhead Lights||10|
|Number Of Light Zones||2|
|Rear Work Shelf Size||10 Inches x 60 Inches|
The TY2SYS-72/PR-SS is a 72" wide, Stainless Steel self service heated deli display case with base from Alto-Shaam with a self-service opening on the right side of the case front, a curved glass front, removable reflective tempered glass sliding doors, and a 10" x 60" rear work shelf. The display case uses Halo Heat to provide a controlled, uniform heat source that radiates from the base of the display case in multiple heat zones for better appearance, taste, and longer holding life.
The heated display case holds a variety of pan sizes and combinations, and it has 10 overhead lights with 2 light zones. The heated base of this display case operates with thermostatic controls and it stands firmly on a standard height base.
The TY2SYS-72/PR-SS display case is an electric unit that is available as 120 / 208-240 Volts, 50/60 Hertz, 1-phase and 18.8 Amps for 4.5 Kilowatts of power and it a NEMA L14-30P plug.
This heated display case is made in the USA, UL listed in the United States and Canada, EAC listed, CE listed, and UL Classified EPH.
Alto-Shaam TY2SYS-72/PR-SS Features
- Self service heated deli display case with base
- Stainless steel exterior
- Self-service opening on the right side of the case front
- Thermostatic controls
- Curved glass front
- Removable reflective tempered glass sliding doors
- 10" x 60" rear work shelf
- Halo Heat provides controlled, uniform heat source
- 10 overhead lights with 2 light zones
- Electrical specifications: 208-240 Volts, 50/60 Hertz, 1-phase and 18.8 Amps, 4.5 kW
- Plug: NEMA L14-30P
- Standard height base
Alto-Shaam TY2SYS-72/PR-SS Benefits
- Heat source radiates from the base in multiple heat zones for better appearance, taste, and longer holding life
- UL listed in the United States and Canada
- UL Classified EPH
- CE listed
- EAC Listed
- Made in the USA
Height: 52 3/16"
Depth: 51 5/16"
Width: 27 3/16"
Length: 69 5/16"
Depth: 4 1/2"
