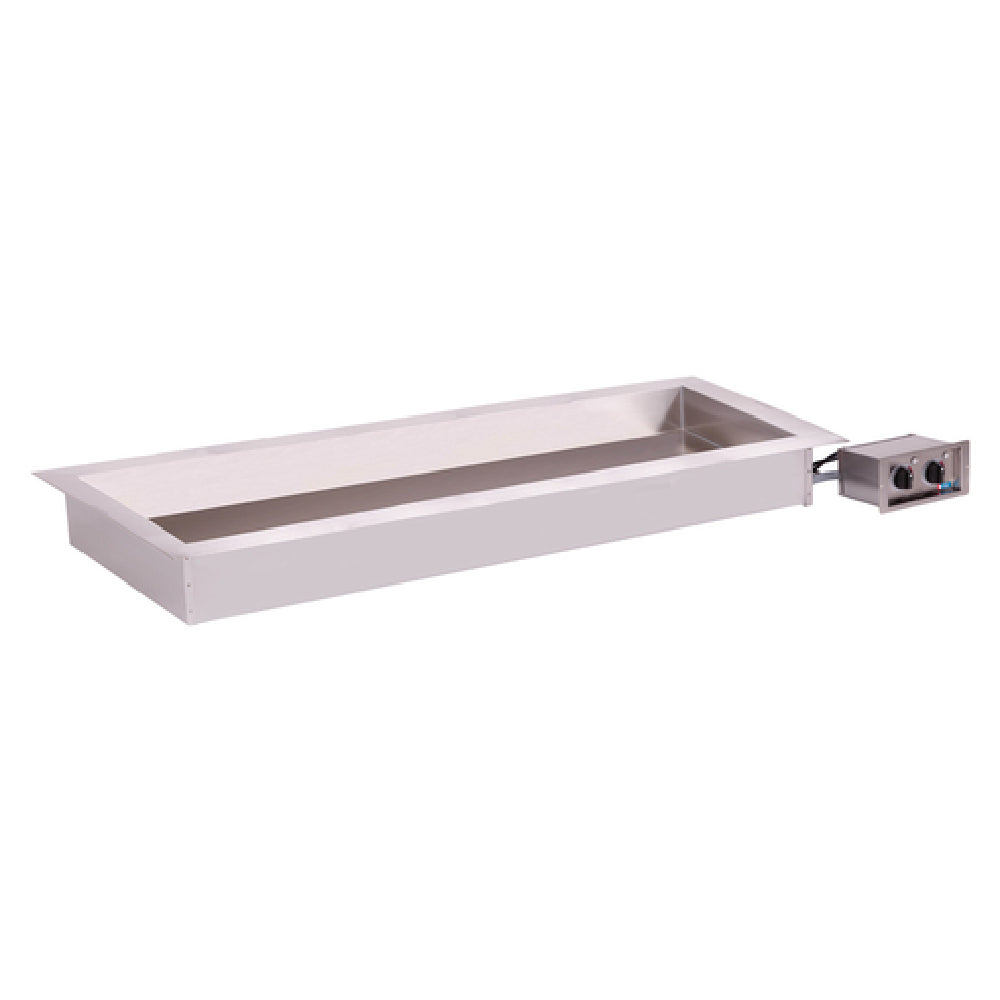

Alto-Shaam 500-HWLF/D6 70 7/16" 5 Full Size 6" Deep Pan Drop-In Hot Food Holding Well With Large Flange, 230V
| Ship Weight | 175 lb |
| Manufacturer | Alto-Shaam |
| Model Number | 500-HWLF/D6 |
| Manufacturer Part # | 500-HWLF/D6 |
| Type | Hot Food Wells |
| Overall Dimensions(HxWxD) | 9-5/16" x 70-7/16" x 27-1/16" |
| Cutout Width | 66 1/2 Inches |
| Cutout Depth | 22 1/2 Inches |
| Control Box Cutout Dimensions(HxWxD) | 4-1/4" x 8-3/4" x 11-3/8" |
| Base Material | Stainless Steel |
| Color | Silver |
| Made In USA | Yes |
| UL Listed | Yes |
| UL Classified EPH | Yes |
| EAC Listed | Yes |
| CE Listed | Yes |
| Control Type | 2 Thermostatic Controllers |
| Installation Type | Drop In |
| Size | Full Size |
| Capacity | (5) 12" x 20" Full-Size, 6" Deep Pans |
| Power Type | Electric |
| Voltage | 230 Volts |
| Hertz | 50/60 |
| Phase | 1 |
| Amps | 12.0 |
| Watts | 3.0 kW |
| Power Cord Length | 9 ft |
| Plug | CEE 7/7 |
| Hazardous Materials | No |
| Oversized Shipping | No |
The 500-HWLF/D6 is a 70 7/16" wide, drop-in hot food holding well from Alto-Shaam with a large flange that holds up to (5) 12" x 20" full-size, 6" deep pans (pans not included). This drop in hot food holding well has has 2 adjustable thermostatic controllers and it has a stainless steel exterior and interior.
The Halo Heat system provides a controlled, uniform heat source that delivers gentle heat that extends the holding life of food products without continuing the cooking process.
The 500-HWLF/D6 heated drop in hot food holding well is an electric unit that is available as 120 Volts, 50/60 Hertz, 1-phase and 25.0 Amps for 3.0 kW with a 6 ft power cord and a NEMA L5-30P plug, or 208-240 Volts, 50/60 Hertz, 1-phase and 10.8 - 12.5 Amps for 2.3 -3.0 kW with a 9 ft power cord and a NEMA 6-15P plug, or 230 Volts, 50/60 Hertz, 1-phase and 12.0 Amps for 3.0 kW with a 9 ft power cord and a 250V rated plug.
This drop in hot food holding well is made in the USA, UL listed for the United States and Canada, UL EPH Classified, EAC listed, and CE listed.
Alto-Shaam 500-HWLF/D6 Features
- Drop-in hot food holding well
- Large flange
- Capacity: (5) 12" x 20" full-size, 6" deep pans (pans not included)
- (2) adjustable thermostatic controllers
- Stainless steel exterior and interior
- Electrical specifications: 230 Volts, 50/60 Hertz, 1-phase and 12.0 Amps for 3.0 kW
- 9 ft power cord
- Plug: CEE 7/7
Alto-Shaam 500-HWLF/D6 Benefits
- Durable stainless steel construction
- Halo Heat system provides a controlled, uniform heat source
- UL listed for the United States and Canada
- UL EPH Classified
- CE listed
- EAC listed
- Made in the USA
Overall Dimensions:
Height: 9-5/16"
Width: 70-7/16"
Depth: 27-1/16"
Counter Cutout Dimensions:
Width: 66-1/2"
Depth: 22-1/2"
Control Box Cutout Dimensions:
Height: 4-1/4"
Width: 8-3/4"
Depth: 11-3/8"
