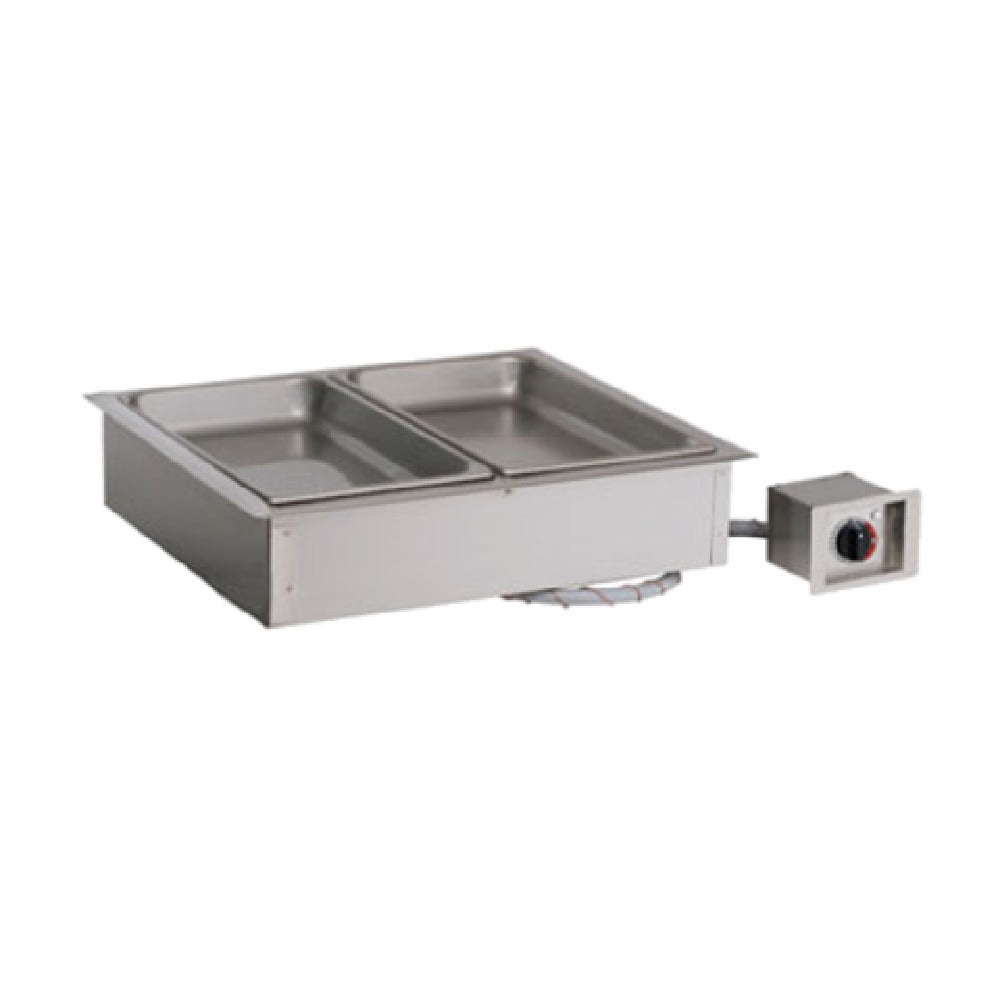

Alto-Shaam 200-HW/D4 28 1/16" 2 Full Size 4" Deep Pan Drop-In Hot Food Holding Well, 208-240V
| Ship Weight | 100 lb |
| Manufacturer | Alto-Shaam |
| Model Number | 200-HW/D4 |
| Manufacturer Part # | 200-HW/D4 |
| Type | Hot Food Wells |
| Overall Dimensions(HxWxD) | 7-5/16" x 28-1/16" x 23-1/8" |
| Cutout Width | 27 1/4 Inches |
| Cutout Depth | 22 1/2 Inches |
| Control Box Cutout Dimensions(HxWxD) | 4-1/4" x 5-1/4" x 11-3/8" |
| Base Material | Stainless Steel |
| Color | Silver |
| Made In USA | Yes |
| UL Listed | Yes |
| UL Classified EPH | Yes |
| EAC Listed | Yes |
| CE Listed | Yes |
| Control Type | Single Thermostatic Controller |
| Installation Type | Drop In |
| Size | Full Size |
| Number Of Wells | 1 |
| Capacity | (2) 12" x 20" Full-Size, 4" Deep Pans |
| Power Type | Electric |
| Voltage | 208 - 240 Volts |
| Hertz | 50/60 |
| Phase | 1 |
| Amps | 4.3 - 5.0 |
| Watts | 0.9 - 1.2 kW |
| Power Cord Length | 9 ft |
| Plug | NEMA 6-15P |
| Oversized Shipping | No |
| Hazardous Materials | No |
The 200-HW/D4 is a 28 1/16" wide drop-in hot food holding well from Alto-Shaam for (2) 12" x 20" full-size, 4" deep pan (pans not included).
This drop in hot food holding well has a single hot well with an adjustable single thermostatic controller and it has a stainless steel exterior and interior. The Halo Heat system provides a controlled, uniform heat source that delivers gentle heat that extends the holding life of food products without continuing the cooking process.
The 200-HW/D4 heated drop in hot food holding well is an electric unit that is available as 120 Volts, 50/60 Hertz, 1-phase and 10.0 Amps for 1.2 kW with a 6 ft power cord and a NEMA 5-15P plug, or 208-240 Volts, 50/60 Hertz, 1-phase and 4.3 - 5.0 Amps for 0.9 - 1.2 kW with a 9 ft power cord and a NEMA 6-15P plug, or 230 Volts, 50/60 Hertz, 1-phase and 5.2 Amps for 1.2 kW with a 9 ft power cord and a 250V rated plug.
This drop in hot food holding well is made in the USA, UL listed for the United States and Canada, UL EPH Classified, EAC listed, and CE listed.
Alto-Shaam 200-HW/D4 Features
- Drop-in hot food holding well
- Single well
- Capacity: (2) 12" x 20" full-size, 4" deep pans (pans not included)
- Adjustable single thermostatic controller
- Stainless steel exterior and interior
- Electrical specifications: 208-240 Volts, 50/60 Hertz, 1-phase and 4.3 - 5.0 Amps for 0.9 - 1.2 kW
- 9 ft power cord
- Plug: NEMA 6-15P
Alto-Shaam 200-HW/D4 Benefits
- Durable stainless steel construction
- Halo Heat system provides a controlled, uniform heat source
- UL listed for the United States and Canada
- UL EPH Classified
- CE listed
- EAC listed
- Made in the USA
Overall Dimensions:
Height: 7-5/16"
Width: 28-1/16"
Depth: 23-1/8"
Counter Cutout Dimensions:
Width: 27-1/4"
Depth: 22-1/2"
Control Box Cutout Dimensions:
Height: 4-1/4"
Width: 5-1/4"
Depth: 11-3/8"
