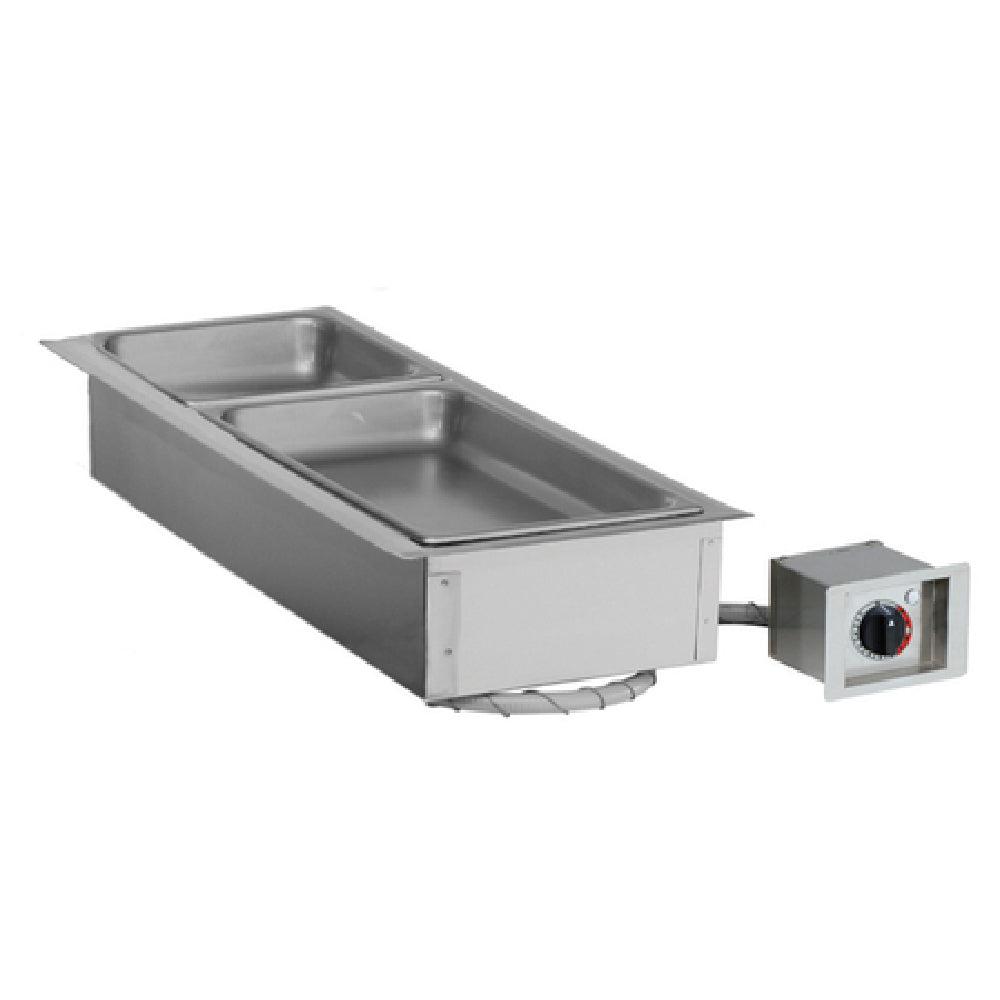

Alto-Shaam 100-HW/D643 15" 1 Full Size And 1 Third Size 6" Deep Pan Drop-In Hot Food Holding Well, 120V
| Ship Weight | 85 lb |
| Manufacturer | Alto-Shaam |
| Model Number | 100-HW/D643 |
| Manufacturer Part # | 100-HW/D643 |
| Type | Hot Food Wells |
| Overall Dimensions(HxWxD) | 8-3/16" x 15" x 30-3/16" |
| Cutout Width | 14 1/4 Inches |
| Cutout Depth | 29 1/2 Inches |
| Control Box Cutout Dimensions(HxWxD) | 4-1/4" x 5-1/4" x 11-3/8" |
| Base Material | Stainless Steel |
| Color | Silver |
| Made In USA | Yes |
| UL Listed | Yes |
| UL Classified EPH | Yes |
| CE Listed | Yes |
| Control Type | Thermostatic |
| Installation Type | Drop In |
| Number Of Pans | 2 |
| Size | 4/3 Size |
| Capacity | (1) 12" x 20" Full-Size, 6" Deep Pan, (1) 12" x 6" Third-Size, 6" Deep Pan |
| Power Type | Electric |
| Voltage | 120 Volts |
| Hertz | 50/60 |
| Phase | 1 |
| Amps | 6.8 |
| Watts | 800 Watts |
| Power Cord Length | 6 ft |
| Plug | NEMA 5-15P |
| Oversized Shipping | No |
| Hazardous Materials | No |
The 100-HW/D643 is a 15" wide drop-in hot food holding well from Alto-Shaam for (1) 12" x 20" full-size, 6" deep pan and (1) 12" x 6" third-size, 6" deep pan (pans not included). The Halo Heat system provides a controlled, uniform heat source that delivers gentle heat that extends the holding life of food products without continuing the cooking process.
This drop in hot food holding well has an adjustable thermostatic controller and it has a stainless steel exterior and interior.
The 100-HW/D643 heated drop in hot food holding well is an electric unit that runs at 120 Volts, 50/60 Hertz, 1-phase and 6.8 Amps for 800 Watts with a 6 ft power cord and a NEMA 5-15P plug.
This drop in hot food holding well is made in the USA, UL listed for the United States and Canada, UL EPH Classified, and CE listed.
Alto-Shaam 100-HW/D643 Features
- Drop-in hot food holding well
- Capacity: (1) 12" x 20" full-size, 6" deep pan and (1) 12" x 6" third-size, 6" deep pan (pans not included)
- Adjustable thermostatic controller
- Stainless steel exterior and interior
- Electrical specifications: 120 Volts, 50/60 Hertz, 1-phase and 6.8 Amps for 800 Watts
- 6 ft power cord
- Plug: NEMA 5-15P
Alto-Shaam 100-HW/D643 Benefits
- Durable stainless steel construction
- Halo Heat system provides a controlled, uniform heat source
- UL listed for the United States and Canada
- UL EPH Classified
- CE listed
- Made in the USA
Overall Dimensions:
Height: 8-3/16"
Width: 15"
Depth: 30-3/16"
Counter Cutout Dimensions:
Width: 14-1/4"
Depth: 29-1/2"
Control Box Cutout Dimensions:
Height: 4-1/4"
Width: 5-1/4"
Depth: 11-3/8"
