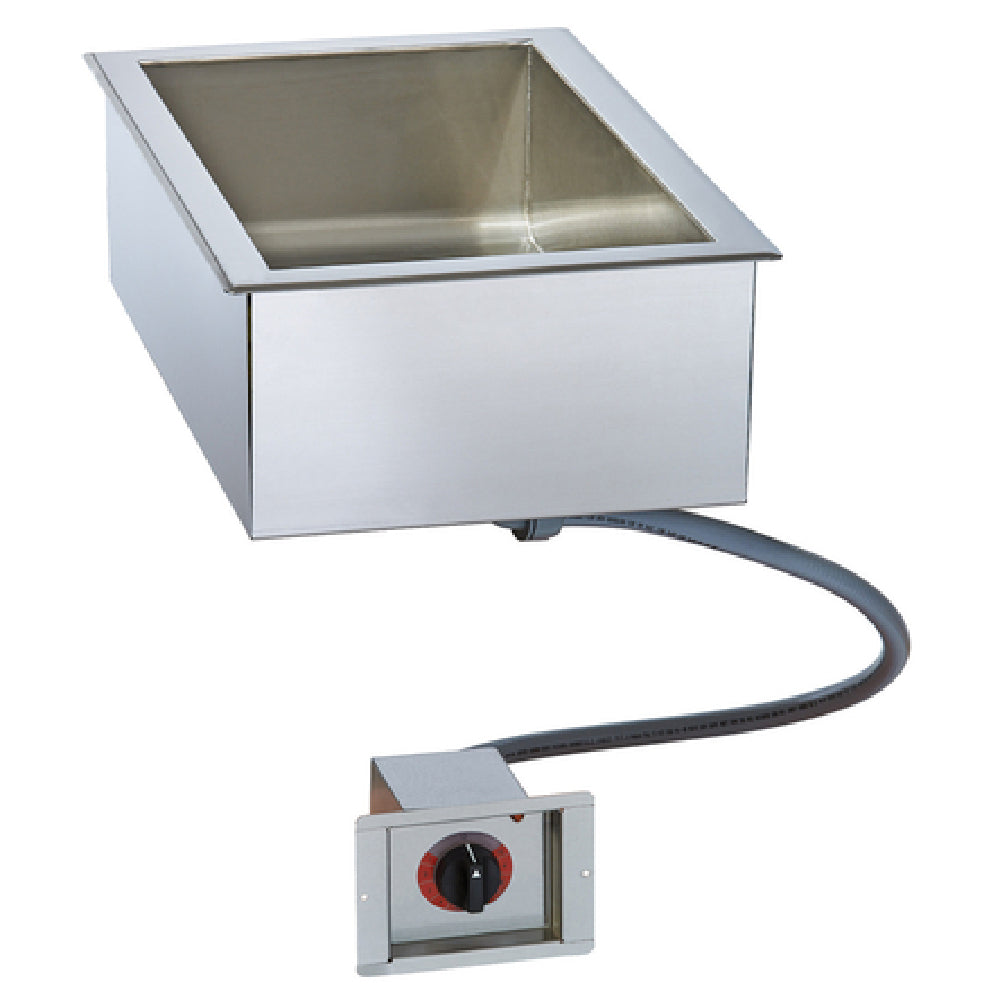

Alto-Shaam 100-HW/D4 15" 1 Full Size 4" Deep Pan Drop-In Hot Food Holding Well, 120V
| Ship Weight | 100 lb |
| Manufacturer | Alto-Shaam |
| Model Number | 100-HW/D4 |
| Manufacturer Part # | 100-HW/D4 |
| Type | Hot Food Wells |
| Overall Dimensions(HxWxD) | 7" x 15" x 23-1/8" |
| Cutout Width | 14 1/4 Inches |
| Cutout Depth | 22 1/2 Inches |
| Control Box Cutout Dimensions(HxWxD) | 4-1/4" x 5-1/4" x 11-3/8" |
| Base Material | Stainless Steel |
| Color | Silver |
| Made In USA | Yes |
| UL Listed | Yes |
| UL Classified EPH | Yes |
| CE Listed | Yes |
| Control Type | Thermostatic |
| Installation Type | Drop In |
| Number Of Pans | 1 |
| Size | Full Size |
| Capacity | (1) 12" x 20" Full-Size, 4" Deep |
| Power Type | Electric |
| Voltage | 120 Volts |
| Hertz | 50/60 |
| Phase | 1 |
| Amps | 5.0 |
| Watts | 600 Watts |
| Power Cord Length | 6 ft |
| Plug | NEMA 5-15P |
| Oversized Shipping | No |
| Hazardous Materials | No |
The 100-HW/D4 is a 23 1/8" wide 1 full size pan drop in hot food well from Alto-Shaam for 4" deep pans and comes included with 2 half/third-size pan divider bars. The food well has the capacity for (1) 12" x 20" full-size pan that is not included.
This drop in hot food well has a stainless steel exterior and interior with coved corners on two sides. The unit is operated by an adjustable thermostat and it includes an indicator light.
The 100-HW/D4 drop in hot food well is an electric unit that is available as 120 Volts, 50/60 Hertz, 1-phase and 5.0 Amps for 600 Watts and it uses a NEMA 5-15P plug.
This drop in hot food well is made in the USA, UL Classified EPH, and UL listed for the United States and Canada.
Alto-Shaam 100-HW/D4 Features
- Drop in hot food well
- Capacity: (1) 12" x 20" full-size pan (not included)
- For 4" deep pans
- 2 half/third-size pan divider bars included
- Stainless steel exterior and interior
- Coved corners on two sides
- Adjustable thermostat
- Indicator light
- Electrical specifications: 120 Volts, 50/60 Hertz, 1-phase and 5.0 Amps for 600 Watts
- NEMA 5-15P plug
- 6 ft power cord
Alto-Shaam 100-HW/D4 Benefits
- Durable stainless steel construction
- UL Classified EPH
- UL listed for the United States and Canada
- Made in the USA
Overall Dimensions:
Height: 7"
Width: 15"
Depth: 23 1/8"
Cutout Dimensions:
22-1/2" W x 14-1/4" D With 4" Bottom Clearance
